Lionpak® 2300

100% GFO yarn packing that is highly versatile and adds a new dimension to reliability and performance.

TYPICAL APPLICATIONS
  • Pumps
  • Valves

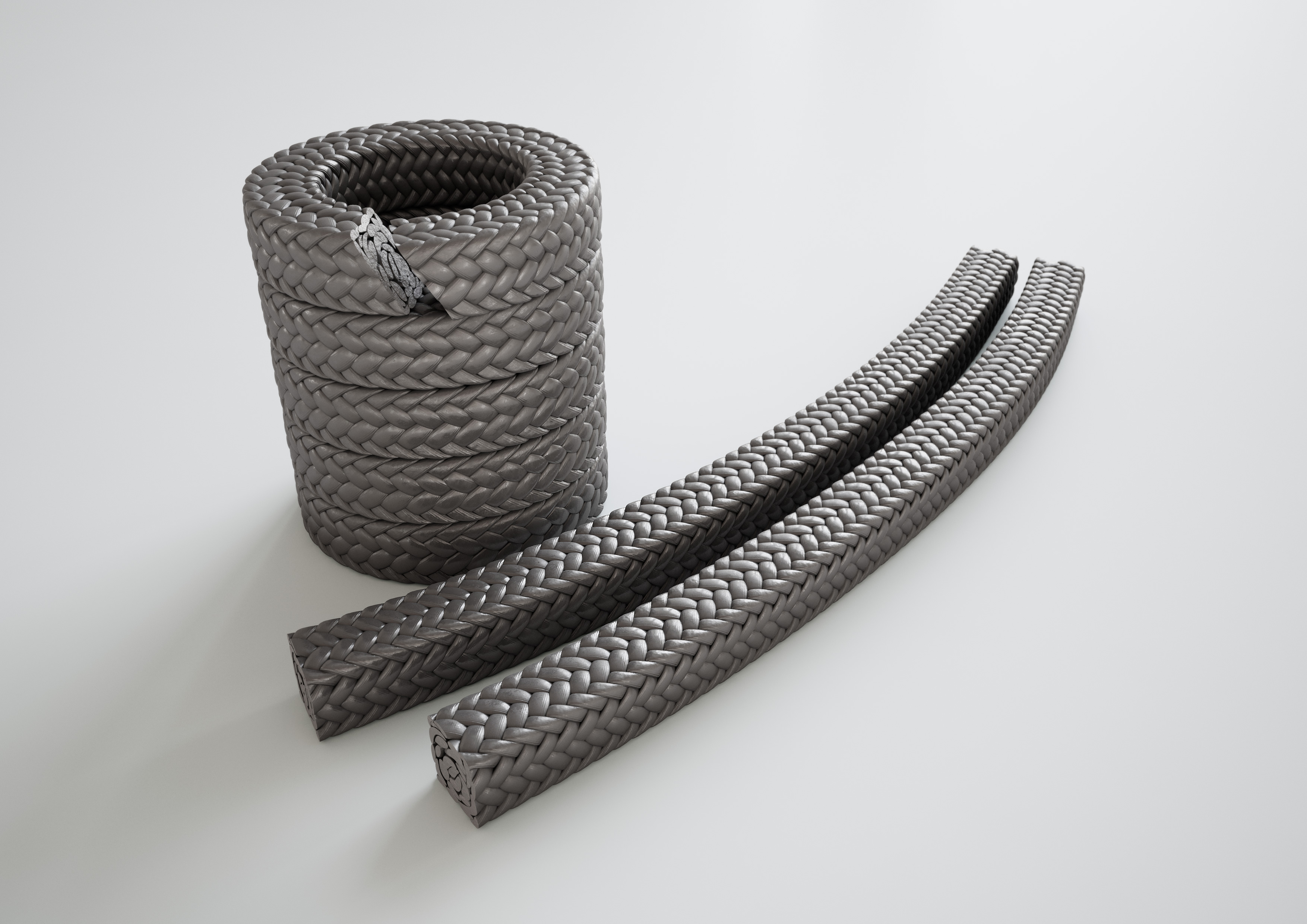

Formerly known as Fluograf, Lionpak 2300 is a 100% GFO yarn packing that is highly versatile and adds a new dimension to reliability and performance.

Made totally from WL Gore & Associates' highly developed GFO yarn - combining the benefits of ePTFE, graphite and high temperature lubricants - this cross-plaited packing offers the ideal balance between density, resilience, strength and durability.

A cost effective alternative without WRAS approval is also available, please download Lionpak 2302 datasheet for full details and specification.

  • Extended service life - by up to 400% in harsh environments
  • Well proven with aggressive media
  • High thermal conductivity for cool running
  • Low coefficient of friction and minimal shaft wear
  • Very good start-up and emergency running characteristics
  • Non-hardening

Valves and pumps handling aggressive chemical media in the petrochemical, pulp and paper, power generation and metallurgical sectors - as well as potable water, and steam at up to 260°C (500°F).

Valve Stem Duties

  • Maximum operating temperature: +260°C (+500°F)
  • Minimum operating temperature: -100°C (-148°F)
  • Maximum system pressure: 8 MPa/80 bar (1160 psi)

Centrifugal Pumps and Rotary Equipment

  • Maximum operating temperature: +260°C (+500°F)
  • Minimum operating temperature: -100°C (-148°F)
  • Maximum system pressure: 2 MPa/20 bar (290 psi)
  • Maximum shaft speed: 22 m/s (4331 fpm)
  • Please contact us for duties up to 28 m/s (5512 fpm).

Reciprocating Pumps and Rams

  • Maximum operating temperature: +260°C (+500°F)
  • Minimum operating temperature: -100°C (-148°F)
  • Maximum system pressure: 8 MPa/80 bar (1160 psi)
  • Maximum rod speed: 1 m/s (197 fpm)
  • More severe duties can be sealed with specially designed arrangements.

Compatible with chemicals in the range of pH 0-14, including steam, but excluding strong oxidising agents such as aqua regia, fuming nitric acid, oleum and molten alkali metals.

  • All popular square sections from 3 mm (1/8") to 25 mm (1") in boxes containing 8 m (26' 3") or in spools as detailed in the product datasheet
  • Also supplied as split preformed rings and sets
  • Please refer to the product datasheet for spool ordering information

WRAS approved for use with potable water up to 85°C (185°F).
