Lionpak® 9500

A versatile natural yarn packing with PTFE lubrication.

TYPICAL APPLICATIONS
  • Pumps
  • Valves

Formerly known as Ramiex, Lionpak 9500 is a versatile, high-performance packing, cross-plaited from top quality bleached ramie fibre yarns that are impregnated with an advanced PTFE dispersion lubricant. The result is a consistent packing of uniform density and compressibility.

Ramie, a tropical nettle plant, produces a fibre of extreme durability, rot resistance and significantly greater strength than flax, cotton or hemp.

A cost effective alternative is also available, please download the Lionpak 9501 datasheet for full details and specification.

  • Outstanding extrusion resistance
  • Outstanding abrasion resistance
  • Outstanding rot resistance
  • Low friction and low wear
  • Kind to shafts and sleeves

  • Used with great success in the mining and quarrying industries on reciprocating pumps working at 30 MPa with water containing highly abrasive particles
  • Also used for water-based hydraulic systems, pulp and paper processing with cellulose slurry, brine circulation, cooling water systems, and with fluids that crystallise or contain suspended solids

Valve Stem Duties

  • Maximum operating temperature: +120°C (+248°F)
  • Minimum operating temperature: -30°C (-22°F)
  • Maximum system pressure: 25 MPa/250 bar (3626 psi)

Centrifugal Pumps and Rotary Equipment

  • Maximum operating temperature: +120°C (+248°F)
  • Minimum operating temperature: -30°C (-22°F)
  • Maximum system pressure: 2 MPa/20 bar (290 psi)
  • Maximum shaft speed: 17.5 m/s (3445 fpm)

Reciprocating Pumps and Rams

  • Maximum operating temperature: +120°C (+248°F)
  • Minimum operating temperature: -30°C (-22°F)
  • Maximum system pressure: 25 MPa/250 bar (3626 psi)
  • Maximum rod speed: 2 m/s (394 fpm)

Compatible with media in the range pH 4-11.

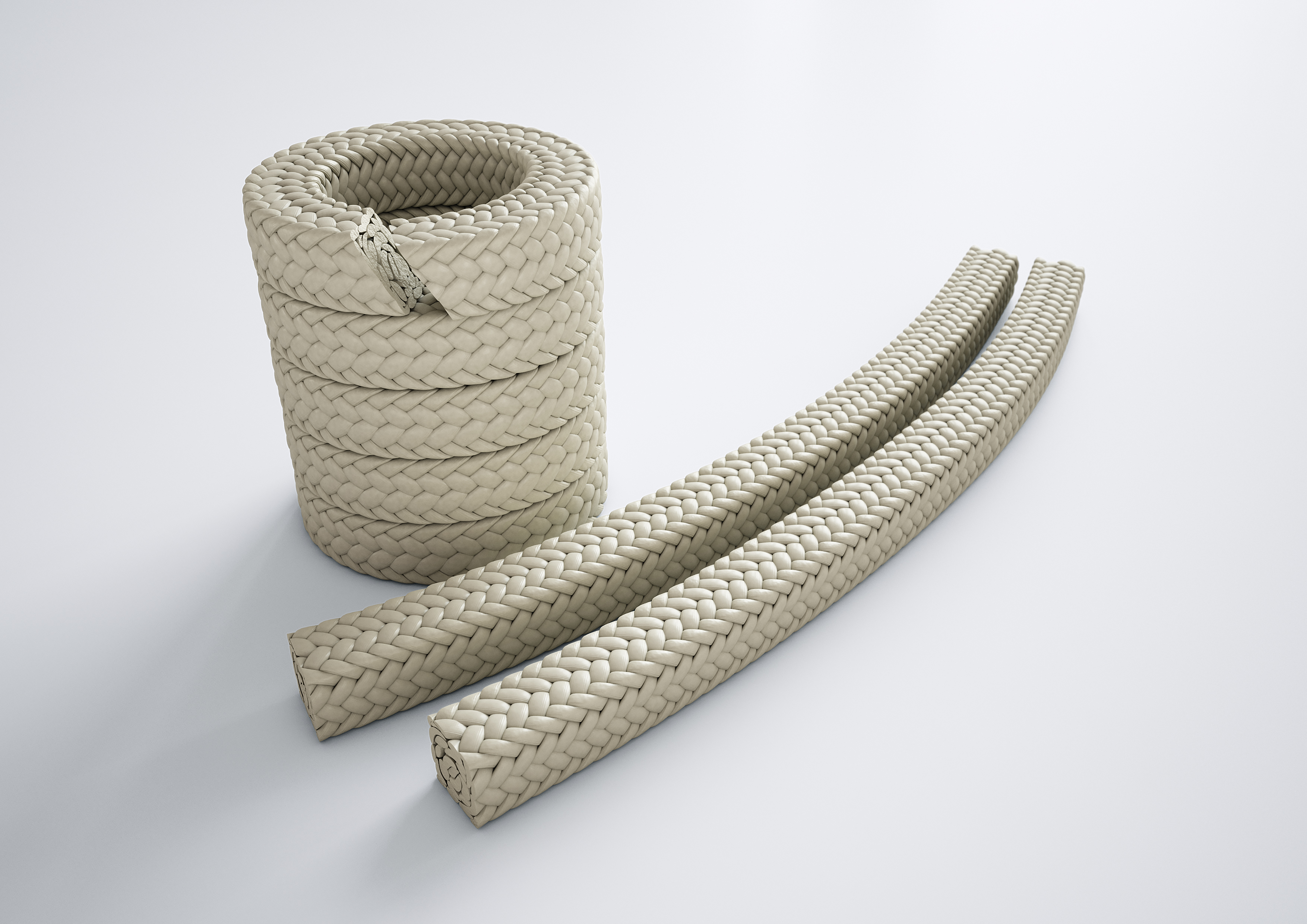

  • All popular square sections from 3 mm (1/8") to 25 mm (1") in boxes containing 8 m (26' 3") in coil form or on spools as detailed in the product datasheet
  • Also supplied as split preformed rings and sets
  • Please refer to the product datasheet for spool ordering information
