Lionpak® 2100

High‑purity white packing, cross plaited from tough, thermally stable PTFE fibre yarn for use in valve and potable water applications.

TYPICAL APPLICATIONS
  • Potable water
  • Pumps
  • Valves

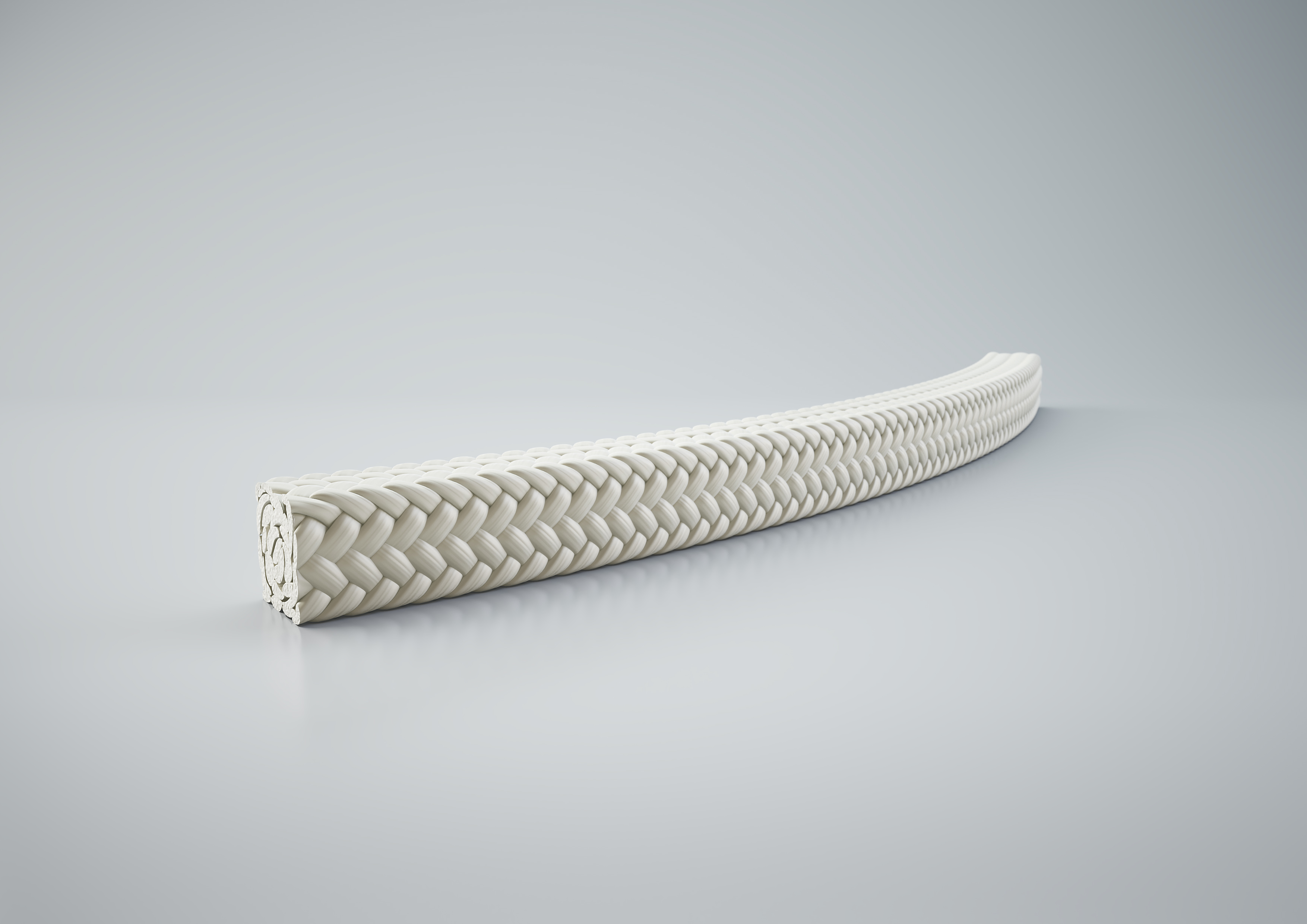

Lionpak 2100 is a high-purity white packing, cross-plaited from tough thermally stable PTFE fibre yarn.

This yarn is impregnated with densifiedparticles of PTFE to generate extra lubrication.

The packing is then cleansed of all organic matter and volatile content. Lionpak 2100 is WRAS approved for use with hot and cold potable water at up to 85°C (185°F). A cost effective alternative without WRAS approval is also available, please download the Lionpak 2101 datasheet for full details and specification.

  • High purity, with excellent chemical resistance
  • Long life valve sealing with minimum maintenance
  • Clean and highly conformable for ease of fitting

The purity of Lionpak 2100 allows it to be used as a valve packing for potable water applications. It is also suitable for slow speed pumps handling chemicals.

Valve Stem Duties

  • Maximum operating temperature: +250°C (+482°F)
  • Minimum operating temperature: -100°C (-148°F)
  • Maximum system pressure: 25 MPa/250 bar (3626 psi)

Centrifugal Pumps and Rotary Equipment

  • Maximum operating temperature: +250°C (+482°F)
  • Minimum operating temperature: -100°C (-148°F)
  • Maximum system pressure: 1 MPa/100 bar (145 psi)
  • Maximum shaft speed: 4 m/s (787 fpm)

Reciprocating Pumps and Rams

  • Maximum operating temperature: +250°C (+482°F)
  • Minimum operating temperature: -100°C (-148°F)
  • Maximum system pressure: 5 MPa/50 bar (725 psi)
  • Maximum rod speed: 0.5 m/s (98 fpm)

Compatible with media in the range of pH 0-14 including corrosive acids and alkalis but excluding molten alkali metals, fluorine compounds and aqua regia.

  • All popular square sections from 3 mm (1/8") to 25 mm (1" ) in boxes containing 8 m (26' 3" ) in coil form or on spools as detailed in the product datasheet
  • Also supplied as split preformed rings and sets
  • Please refer to the product datasheet for spool ordering information

WRAS approved for use with hot and cold potable water at up to 85°C (185°F).
