Lionpak® 2200

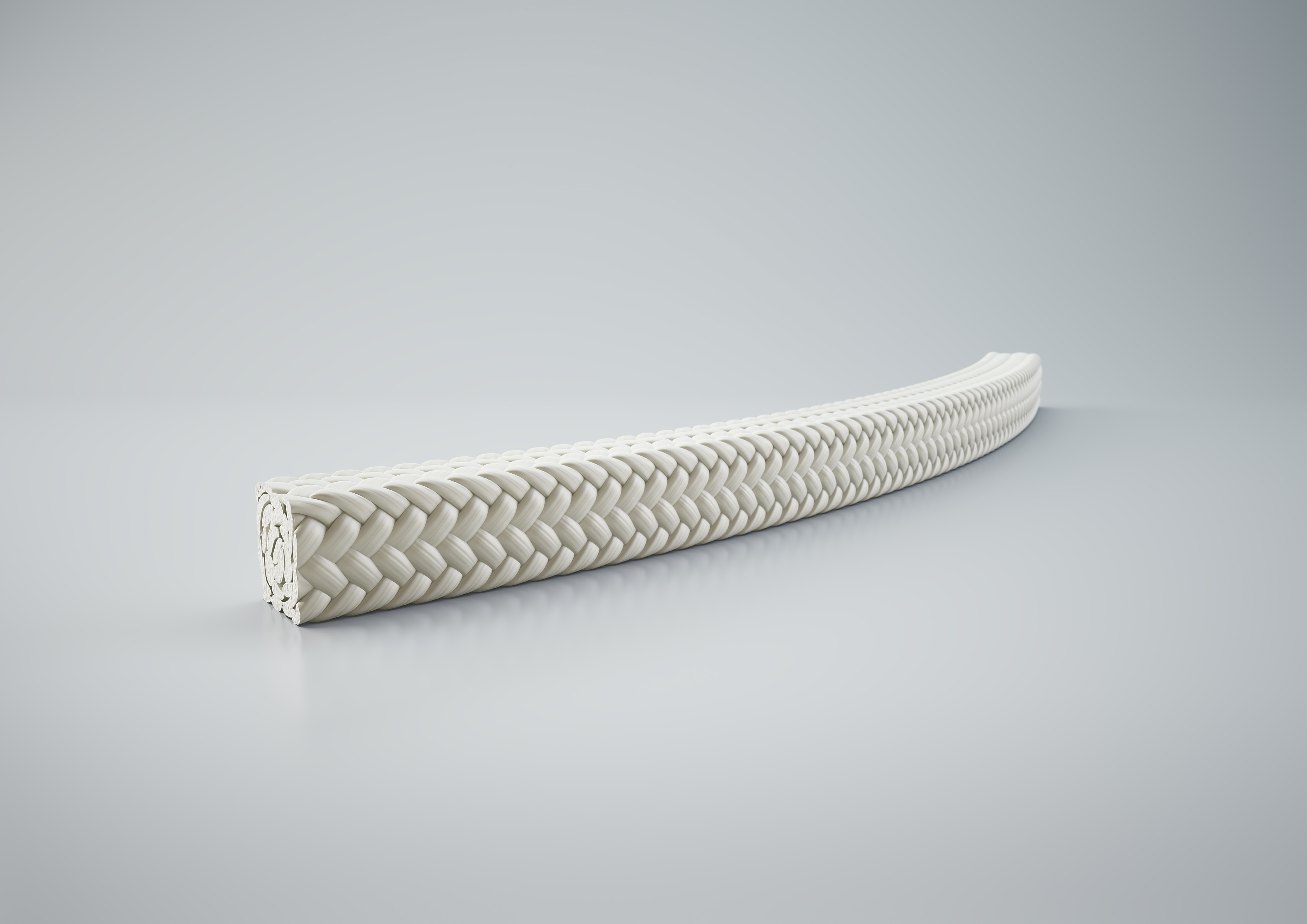

Cross‑plaited thermally stable PTFE packing for pumps, where exceptional chemical resistance is required.

TYPICAL APPLICATIONS
  • Pumps

Lionpak 2200 is a cross-plaited packing made from tough thermally stable PTFE fibre yarn. This yarn is impregnated with densified particles of PTFE to generate additional lubrication.

A cost effective alternative is available, please download the Lionpak 2201 datasheet for full details and specification.

  • Excellent chemical resistance
  • High performance sealing in valve and pump applications
  • Long and efficient working life with minimum maintenance requirements
  • Clean and highly conformable for ease of fitting

This high performance packing is used where its exceptional chemical resistance is required in valves, rotary equipment and reciprocating plant.

Valve Stem Duties

  • Maximum operating temperature: +250°C (+482°F)
  • Minimum operating temperature: -100°C (-148°F)
  • Maximum system pressure: 15 MPa/150 bar (2175 psi)

Centrifugal Pumps and Rotary Equipment

  • Maximum operating temperature: +250°C (+482°F)
  • Minimum operating temperature: -100°C (-148°F)
  • Maximum system pressure: 2.5 MPa/25 bar (363 psi)
  • Maximum shaft speed: 10 m/s (1969 fpm)

Reciprocating Pumps and Rams

  • Maximum operating temperature: +250°C (+482°F)
  • Minimum operating temperature: -100°C (-148°F)
  • Maximum system pressure: 10 MPa/100 bar (1450 psi)
  • Maximum rod speed: 1 m/s (197 fpm)

Compatible with media in the range of pH 0-14, including corrosive acids and alkalis but excluding molten alkali metals and fluorine compounds and aqua regia.
